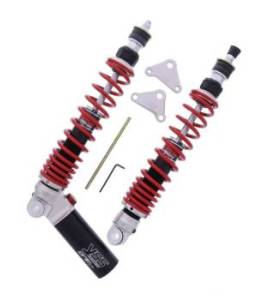

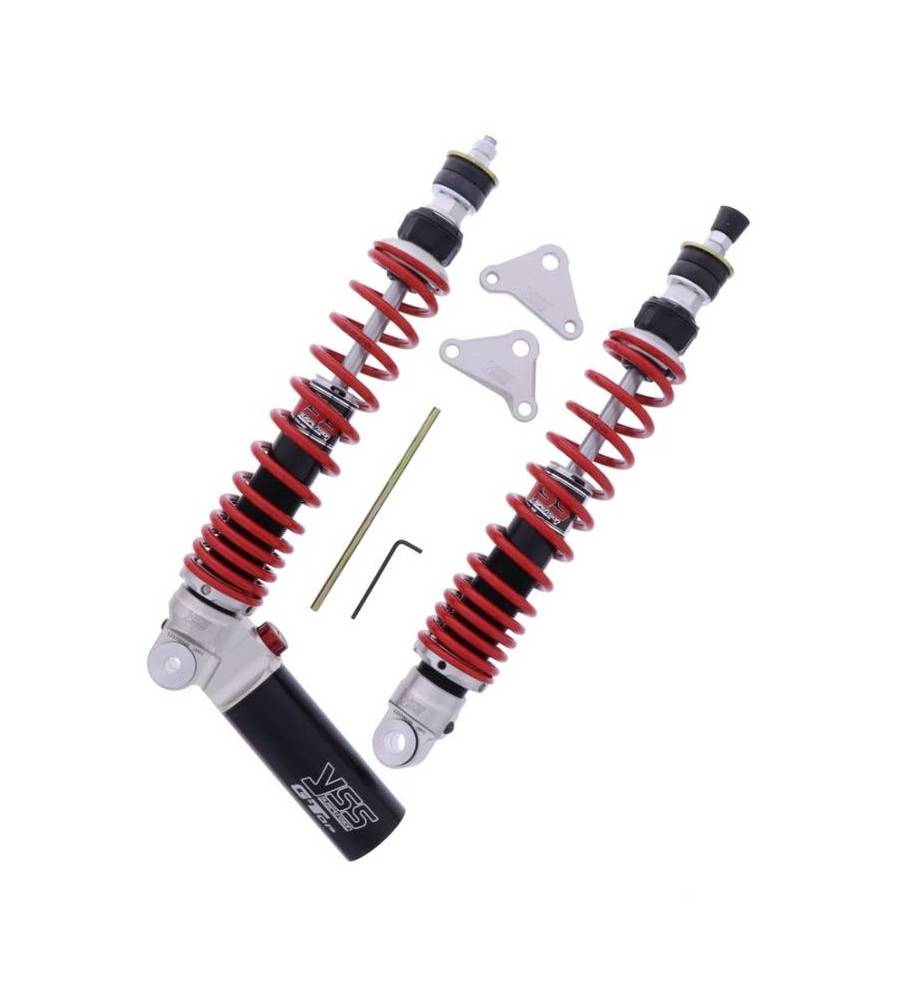

Amortisseur arrière YSS Top Line G-Top

YSS gas pressure shock absorbers – high-quality suspension tuning with maximum control

The YSS gas pressure shock absorber sets new standards in its product class and impresses with outstanding quality and versatile adjustment options. With its dyed aluminium body and external compensation reservoir, it ensures optimal damping performance and thermal stability – ideal for demanding drivers.

Thanks to the precise spring preload via fine thread and the separate compression and rebound adjustment (each with 30 clicks), the suspension can be individually tuned. The matching adjustment tool is already included in the scope of delivery.

Technical data:

• Type: gas pressure
• Manufacturer: YSS
• Length: 340 mm
• Spring colour: red
• Spring characteristic: 13 / 18
• Spring length: 230 mm
• Spring diameter: 42 mm
• Piston diameter: 30 mm
• Piston rod diameter: 12 mm
• Expansion tank: Yes
• Adjustment options: Continuous spring preload, compression stage (30 clicks), rebound stage (30 clicks)
• Upper mounting: Spigot (Ø 10 mm)
• Fixing at the bottom: eye (Ø 10-14 mm)

Contents:

• YSS gas pressure shock absorber
• Including adjustment tool for precise tuning

The YSS gas pressure shock absorber is the perfect choice for drivers who want to optimise their chassis individually and combine maximum driving comfort with maximum stability.
